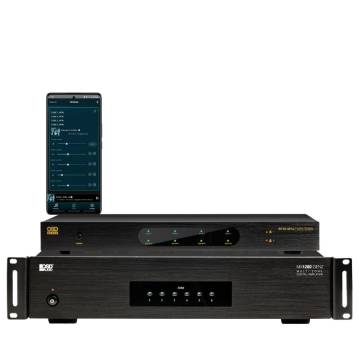

      OSD MAX8 + SRT4 Bundle - 4 Zone App Controlled Multi Channel 80W Amplifier + Media Player

      SKU: KIT-MAX8-SRT4

      Features:

      • 80W per channel at 4 ohms (40W at 8 ohms) with bridging for more power.
      • Four independent audio streams for different music in each zone.
      • App control for volume, inputs, and zones on iOS or Android.
      • RCA, Aux, optical, and USB connections.
      • Rack mount ready for clean, professional installation.

      Elevate your whole-home audio with the OSD MAX8 + SRT4 Bundle, combining a 4-Zone App-Controlled 80W/Ch Multi-Room Amplifier and a 4-Zone App-Controlled Media Streamer for seamless, high-performance sound in every room. The MAX8 amplifier delivers 80 watts per channel at 4 ohms (40W at 8 ohms) across 8 channels, with the flexibility to bridge channels for even more power. Featuring Class D efficiency, this multi-channel amp stays cool and energy-efficient while driving multiple speaker pairs with clarity and precision. Full iOS and Android app control lets you adjust volume, select inputs, and manage zones from anywhere in your home, while multiple input options—RCA, Aux, and optical—ensure compatibility with virtually any setup. Both components are rack mount ready, making them ideal for clean, professional installations in home theaters, media rooms, or distributed audio systems.

      The SRT4 Media Streamer provides four independent streaming sources in one compact unit, giving you the freedom to play the same music across all zones or different tracks in each room. Enjoy access to popular platforms like Spotify, Tidal, AirPlay, Amazon Music, and more, all controllable from your phone or tablet. With both wired and wireless connectivity, plus USB and digital audio inputs, you can integrate everything from network libraries to online services. Perfect for music lovers, installers, and entertainers, this bundle delivers professional-grade audio distribution, simple app-based control, and the flexibility to customize your listening experience for any occasion—all in a space-saving, rack-friendly design.

      Read More
      Read Less


      Technical Specifications

      MAX8:

      • Amplifier Type: Multi Channel/Zone Amplifier
      • Amplifier Class: Class D
      • Channels/Zones: 6 source / 4 zones
      • Power Output @ 8 Ohm: 2 X 25W(RMS) 50W(MAX) per zone
      • Power Output @ 4 Ohm: 2 X 50W (RMS) 100W(MAX) per zone
      • Bridged Rating (Watts): 100W(MAX) per Channel @ 8 ohms
      • Frequency Response: 20Hz to 20KHz + 1.7/-1dB at 1W output into 8 Ohms
      • Impedance: 8 Ohm and 4 Ohm Stable
      • Transformer Type: Toroidal
      • Inputs: 2 x RCA, 1 x 3.5mm TRS, 1 x 3.5mm digital/optical (S/PDIF) Mini Toslink, 2 x RJ45
      • Outputs: 8 x speaker / 6 x pre-amplifier
      • Signal to Noise Ratio: >85 dB A-weighted
      • Capacitors, number & size: N/A
      • Air-cooled or Fan-cooled: Fan-cooled
      • Remote Control: App controlled
      • 12 Volt Triggers: Yes
      • Auto-On Sensing: Yes
      • Sub-Out: No
      • Power Supply: AC 120V/60Hz - 230V/50Hz
      • Rack Mountable: Yes - mounts installed
      • Dimensions (L x D x H): 16.8" x 16.1" x 3.5"
      • Weight: 19 lbs
      • Rating: CE
      • Warranty: 2 Year

      SRT4-GEN2:

      • 2nd Generation HiFi 4 Zone Media Streamer
      • App Control - OSD Player App - iOS or Android
      • Streaming Services: Spotify / Napster / Tidal /TuneIn / iHeart Radio / Amazon Music / vTuner
      • Inputs:
        • Universal Bus: RCA, Digital Optical
        • RCA per Zone, Optical per Zone, USB per Zone
      • Outputs: RCA/Optical/Coaxial per Zone
      • Network:
        • Ethernet - 1 Input / 1 Output
        • Streaming Protocols - AirPlay / DLNA / Spotify Connect
      • 12V Trigger: Universal Bus, 1 per Zone
      • Rack Mountable: 1U Rack Space Style / Mounts Included
      • Dimensions: 16.9" W x 7.87" D x 2.08" H
      • Weight: 4 lbs
      • Warranty: 2 Years
