Thumbnail Filmstrip of OSD FS12 Dual Ported 12" Powered Subwoofer 1200W Images
Designed to meet CEDIA’s target for Level 4 home theaters - 18Hz +/- 3dB, and at an amazing price, the FS12 is a home theater enthusiast’s dream. The industry standard for audio in home theaters is set out in the recommended practices guidelines, known as RP22. It has been established that to be a Level 4 (the highest level) theater, the bass must reach down to 18Hz. It also requires achieving an SPL level of 118dB, which the FS12 does due to the 600W RMS built-in amp. Used in conjunction with suitably powerful amps, such as the OSD Nero HTA7200, and main speakers such as the OSD Black S-series, these subs allow you to experience the ultimate home theater sound.
Features:

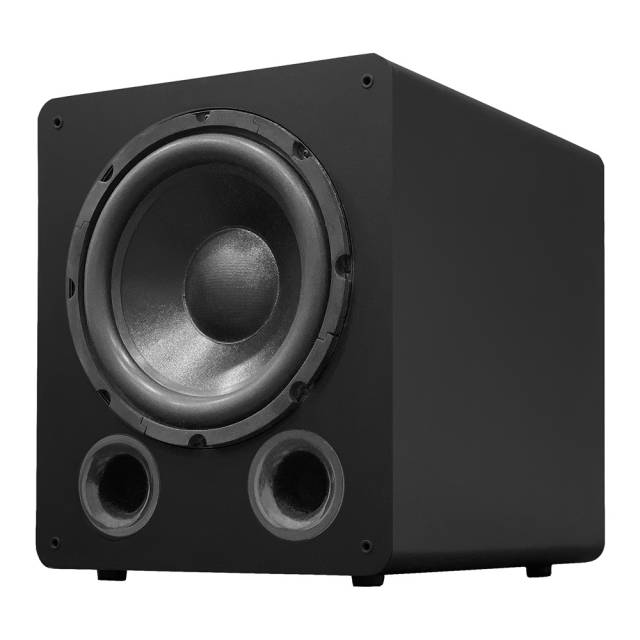

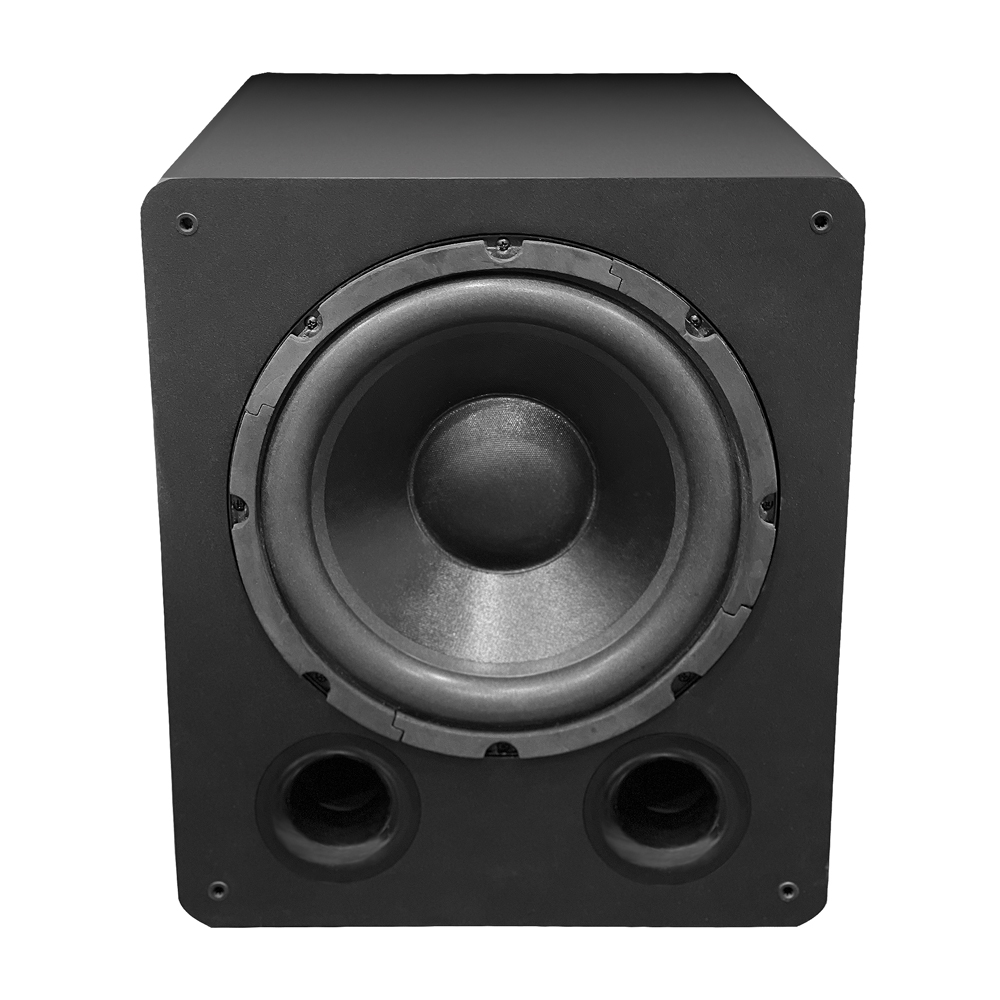

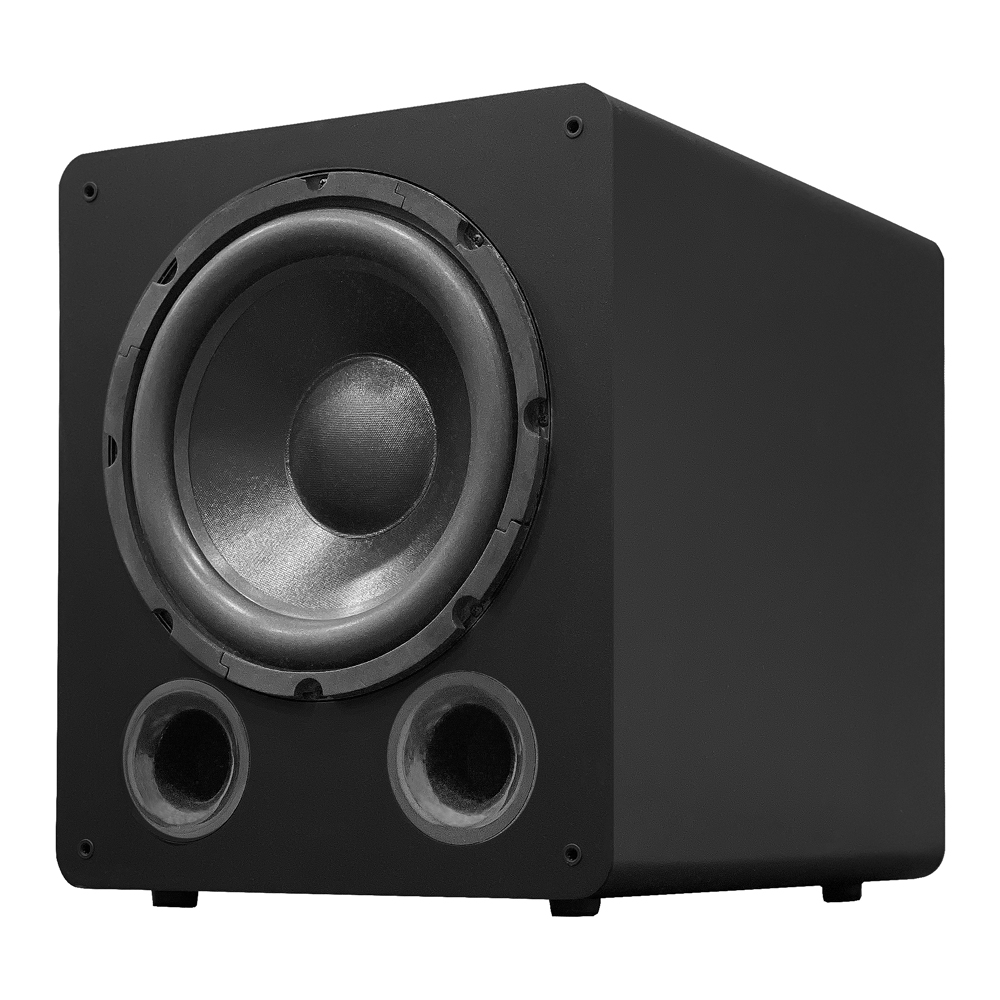

- Front-Firing 12-inch woofer: Reinforced paper cone for rigidity and low distortion
- Twin front-mounted ports: extends bass to 18Hz +/-3dB
- 600W RMS amp: pushes SPL to reference levels
- DSP function: Extends low frequencies or increases SPL for additional fine tuning
- Signal Sensing On/Off: When no signal is present, the subwoofer goes into standby, consuming less than ½ W
Read More
Read Less
Technical Specifications
- Design: Front-Firing 12" Active Subwoofer w/ Dual Ports
- Woofer: 12" Reinforced Paper Cone
- Power Handling: 600W RMS / 1200W Peak
- DSP: Built-In, Independent On/Off Switch
- Frequency Response: 16-200Hz @ -10dB, 18Hz-200Hz @ -3dB
- Low-pass High-End Adjustment Range: 40Hz to 200Hz
- Impedance: 4 Ohms
- Sensitivity: 90dB @1W/1M
- Power Supply: 100V to 240V, CE Certified
- Weight: 58 lbs
- Dimensions: (WxHxD) 15.75" x 19" x 21.25"
