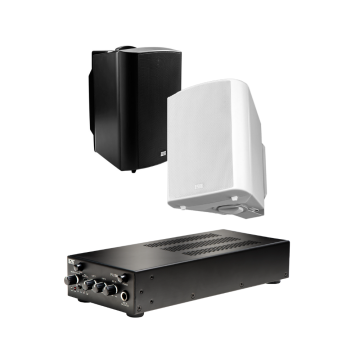

    Compact 70V Audio Kit – 4" Wall Mount Outdoor Speakers w/ 50W Class D Commercial Amplifier

    Thumbnail Filmstrip of Compact 70V Audio Kit – 4" Wall Mount Outdoor Speakers w/ 50W Class D Commercial Amplifier Images

      Purchase Compact 70V Audio Kit – 4" Wall Mount Outdoor Speakers w/ 50W Class D Commercial Amplifier

      Compact 70V Audio Kit – 4" Wall Mount Outdoor Speakers w/ 50W Class D Commercial Amplifier

      SKU: KIT-PAX50-AP490T-PAR

      Color:

      Upgrade your commercial or residential outdoor audio system with this professional-grade 70V audio kit, combining a pair of 4-inch weather-resistant patio speakers and a compact 50W 70V/100V Class D amplifier. Ideal for restaurants, retail storefronts, or patio zones, the speakers feature a durable IPX6-rated enclosure, a 4" polypropylene woofer, and a 0.5" PEI dome tweeter for clear highs and punchy mids. Full-motion mounting brackets offer flexible installation on walls or eaves.

      Paired with the speakers is the PAX50, a slim, energy-efficient 70V/100V Class D amplifier that delivers 50W of clean power in a space-saving 1U rack-width chassis. With RCA and 3.5mm line inputs, a balanced mic input, and line-level pre-out, it’s versatile for paging, music playback, or integration into larger distributed systems. This kit offers scalable, high-performance audio for indoor or outdoor zones—without sacrificing space or reliability.

      Features:

      • Complete 70V audio kit with 4" outdoor speakers and 50W Class D amplifier.
      • IPX6-rated speakers with 4" woofers and 0.5" PEI tweeters for clear outdoor sound.
      • Full-motion brackets allow easy wall or ceiling mounting.
      • Compact 1U amplifier delivers 50W of efficient Class D power.
      • RCA, 3.5mm, mic input, and pre-out for flexible connectivity.
      Read More
      Read Less


      Technical Specifications

      AP490:
      • 4" indoor/outdoor patio speakers with built-in 70V transformer and 8-ohm compatibility.
      • IPX6-rated weather-resistant design with rust-resistant aluminum grille.
      • Features a 4" polypropylene woofer and 0.5" Mylar dome tweeter for balanced sound.
      • Wide frequency response from 70Hz to 20kHz and 88dB sensitivity for clear audio.
      • Power handling range of 5W–60W peak with 70V tap options at 16W, 8W, 4W, and 2W.
      • Includes full-motion mounting bracket for flexible installation.
      • Compact size (7.7" x 4.85" x 4.75") and available in black or white; sold as a pair.
      PAX-50:
      • Power Output: 50W @ 70V or 100V, Class D efficiency
      • Inputs: RCA, 3.5mm line-in, and 1/4" mic input with volume control
      • Frequency Response: 100Hz – 20kHz (+1dB/-5dB) for speech and background music
      • Signal-to-Noise Ratio: 80dB for clean, low-noise performance
      • Output Options: 70V/100V speaker output via Phoenix connector with selectable switch
      • Control Features: Front-panel master volume + individual gain knobs for Line 1 & 2
      • Form Factor: Compact metal chassis (6.24" x 10.09" x 1.9"); optional rack-mount kit
      • Certifications & Power: RoHS2, FCC, CE certified; external power supply (100–240V AC)
