We are thrilled to unveil the OSD Nero XMAX11 11-Channel Home Theater Amplifier, a powerhouse designed to transform your home entertainment into a cinematic masterpiece. Crafted for audiophiles, movie buffs, and gaming enthusiasts, the XMAX11 delivers unparalleled power and precision, ensuring every sound—from a whisper to an explosion—is reproduced with stunning clarity.
Unmatched Power and Performance
The heart of the XMAX11 lies in its robust power output. It provides three channels at 310 watts and eight channels at 135 watts into 4 ohms, all channels driven with less than 1% distortion. For 8-ohm loads, it delivers 210 watts for the three main channels and 85 watts for the remaining eight, maintaining exceptional sound quality. This power enables the XMAX11 to achieve reference-level sound, matching commercial theater standards of 108dB for screen speakers and 105dB for surrounds, ensuring an immersive audio experience.
Superior Sound Quality with Identical Timbre
A standout feature of the XMAX11 is its ability to maintain identical timbre across all 11 channels. By using identical components—capacitors, power supplies, and transistors—for each channel, the amplifier ensures every speaker produces the same sonic signature. This consistency is crucial for a seamless surround sound experience, whether you’re enjoying dialogue from the center channel or effects from the height speakers in a Dolby Atmos setup.
Robust Design for Demanding Applications
Engineered to handle even the most challenging speaker loads, the XMAX11 features over 2.3KVA of toroidal transformer power and substantial capacitance (3 x 4000uF for main channels and 8 x 2000uF for others). This design provides a massive reserve of instantaneous power, delivering clean, undistorted sound during dynamic audio peaks, such as intense movie soundtracks or complex musical passages.
User-Friendly Features

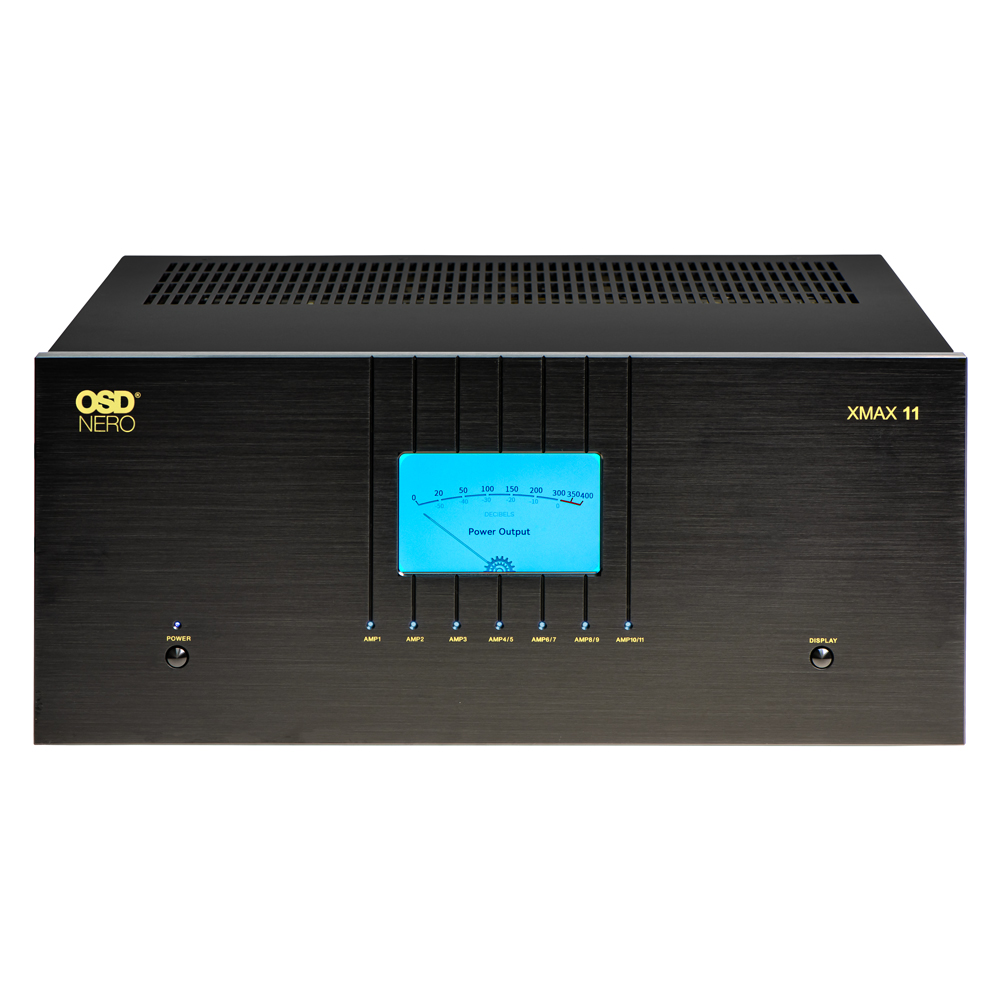

The XMAX11 combines technical excellence with user convenience. Its front panel includes a dimmable VU meter, offering a classic aesthetic while displaying the power delivered to your speakers. LED status lights for each channel allow easy monitoring of performance. Additionally, trigger and auto-on features enable the amplifier to power on and off automatically with your other equipment, simplifying integration into your home theater system.
Technical Specifications
For those who love the details, here’s a snapshot of the XMAX11’s capabilities:
| Specification | Details |
|---|---|
| Power Output (4 Ohms) | 3 x 310W, 8 x 135W (1% THD) |
| Power Output (8 Ohms) | 3 x 210W, 8 x 85W (1% THD) |
| Frequency Response | 5Hz – 50KHz, +0/-3dB |
| Signal to Noise Ratio | 110dB at rated power |
| Damping Factor | 165W |
| Efficiency | 67% |
| Weight | 89 lbs |
| Dimensions | 7.25″ x 17.1″ x 17.6″ |
| Warranty | 5 Years |
These specifications highlight the XMAX11’s ability to deliver high-fidelity audio with minimal noise and excellent speaker control, making it a cornerstone for any high-end home theater.
Why Choose the OSD Nero XMAX11?
The XMAX11 stands out for several reasons:
- Power and Headroom: Its high power output and robust design ensure it can handle any audio content, from subtle nuances to explosive sound effects, without distortion.
- Sound Purity: The amplifier adds only power to the signal, preserving the audio’s integrity for a true-to-source experience.
- Versatility: Ideal for advanced setups like 7.1.4 Dolby Atmos or traditional 5.1 systems, the XMAX11 supports a wide range of configurations.
- Reliability: Backed by a 5-year warranty and lifetime tech support, the XMAX11 reflects our confidence in its durability and performance.
Built on a Legacy of Quality
At Outdoor Speaker Depot, we pride ourselves on delivering high-quality audio solutions. Our customers consistently rate us highly, with a 4.8 out of 5.0 rating, and 97% giving us 4 or 5 stars. The XMAX11 continues this tradition, offering exceptional value and performance for discerning home theater enthusiasts.
