OSD Audio ICE630ST 6.5" 70V/100V Commercial Ceiling Speaker, Back Can, 8 Ohm, Single

The OSD Audio ICE630ST is a 6.5 inch commercial in-ceiling speaker with a factory installed back can, built to deliver clear sound in busy, noisy spaces such as restaurants, bars, retail stores, offices and lobbies.

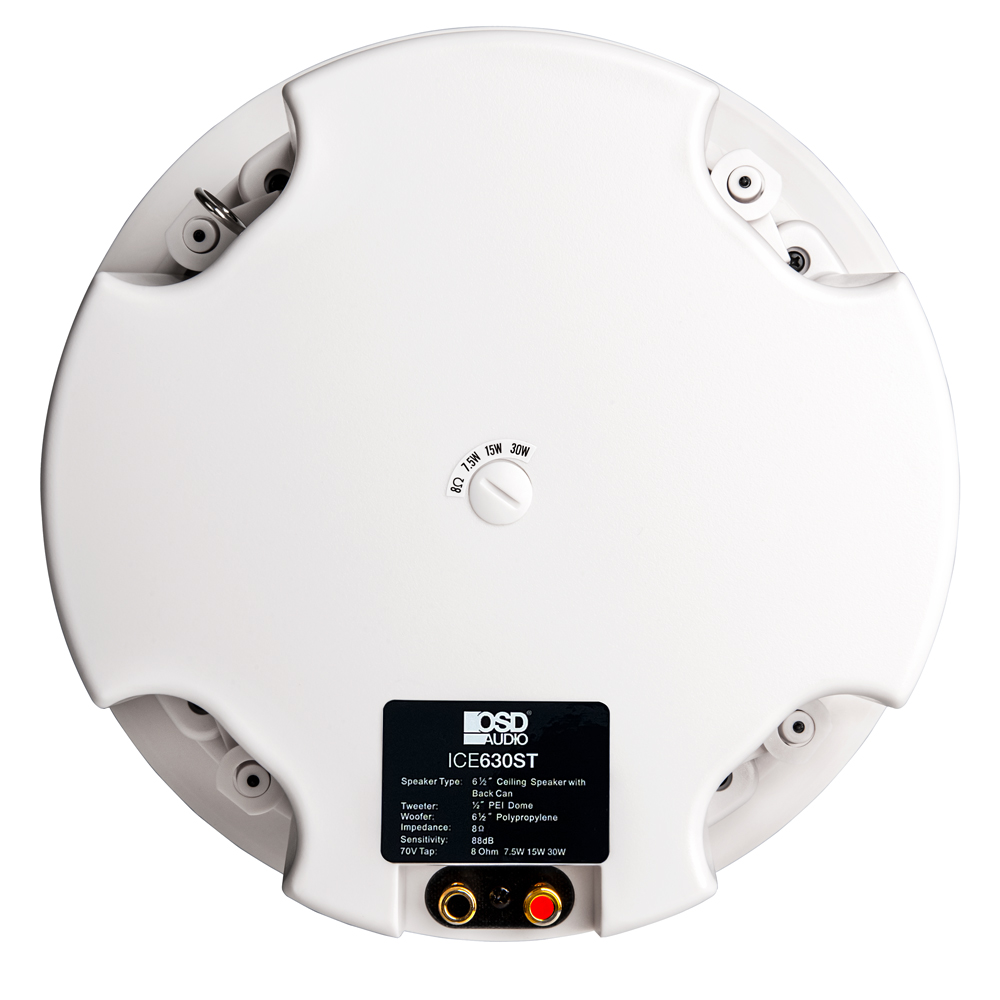

A built-in 70V/100V transformer with 30W, 15W and 7.5W taps lets integrators run many speakers on a single 70V or 100V amplifier and set each one to the right level. For residential or 8 ohm systems, switch to the 8 ohm setting. The tap selector is easy to reach by removing the magnetic grille.

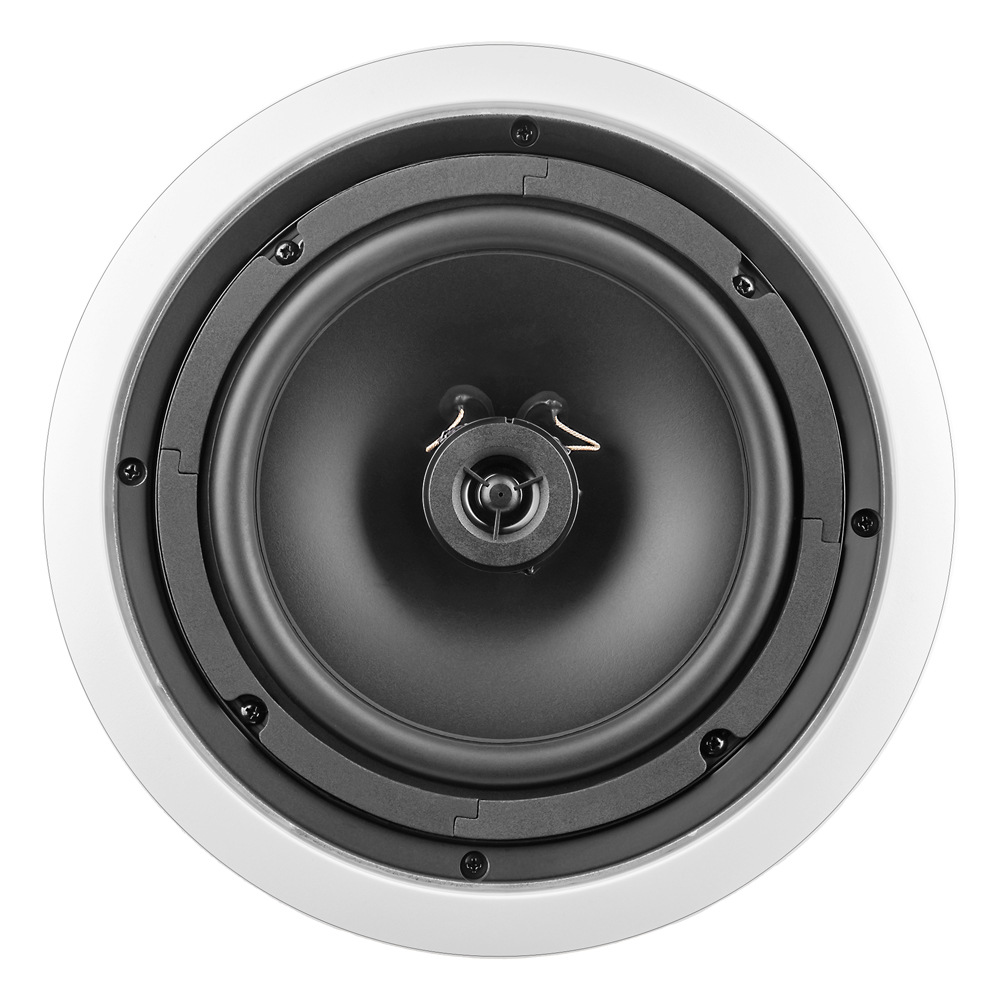

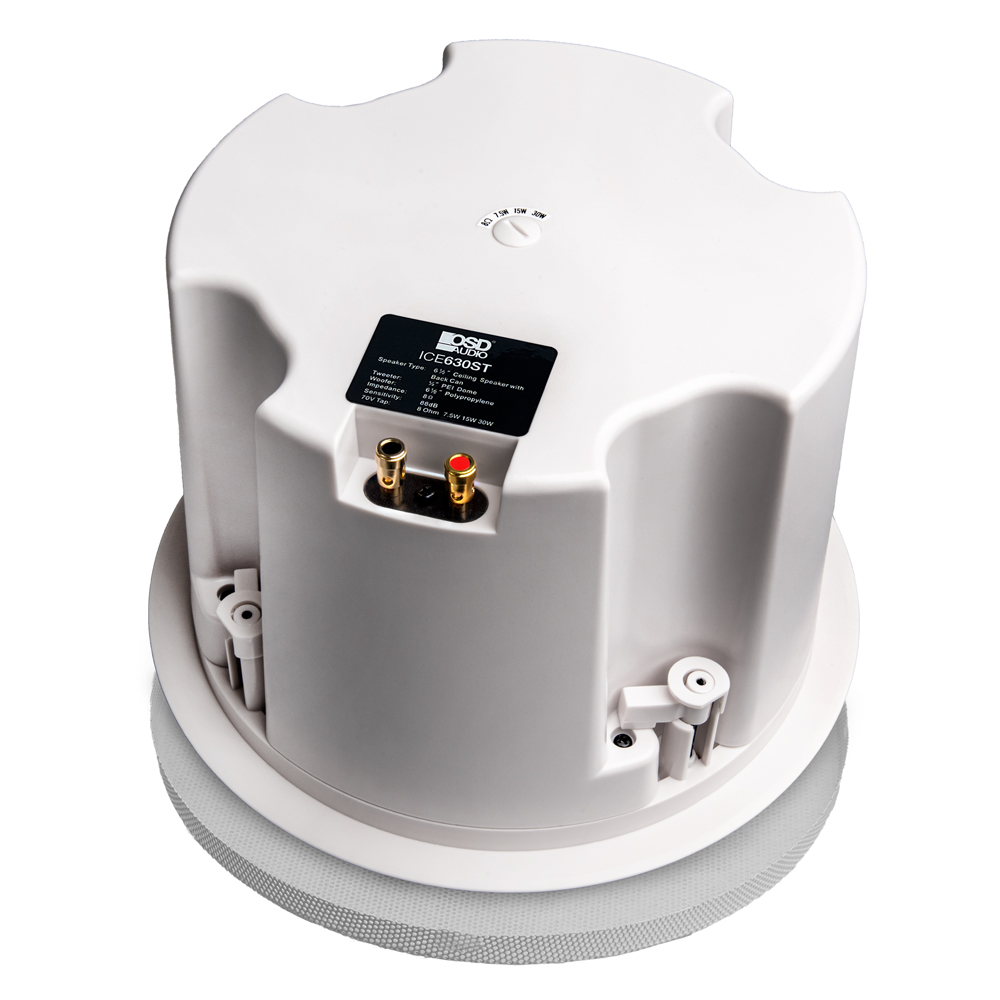

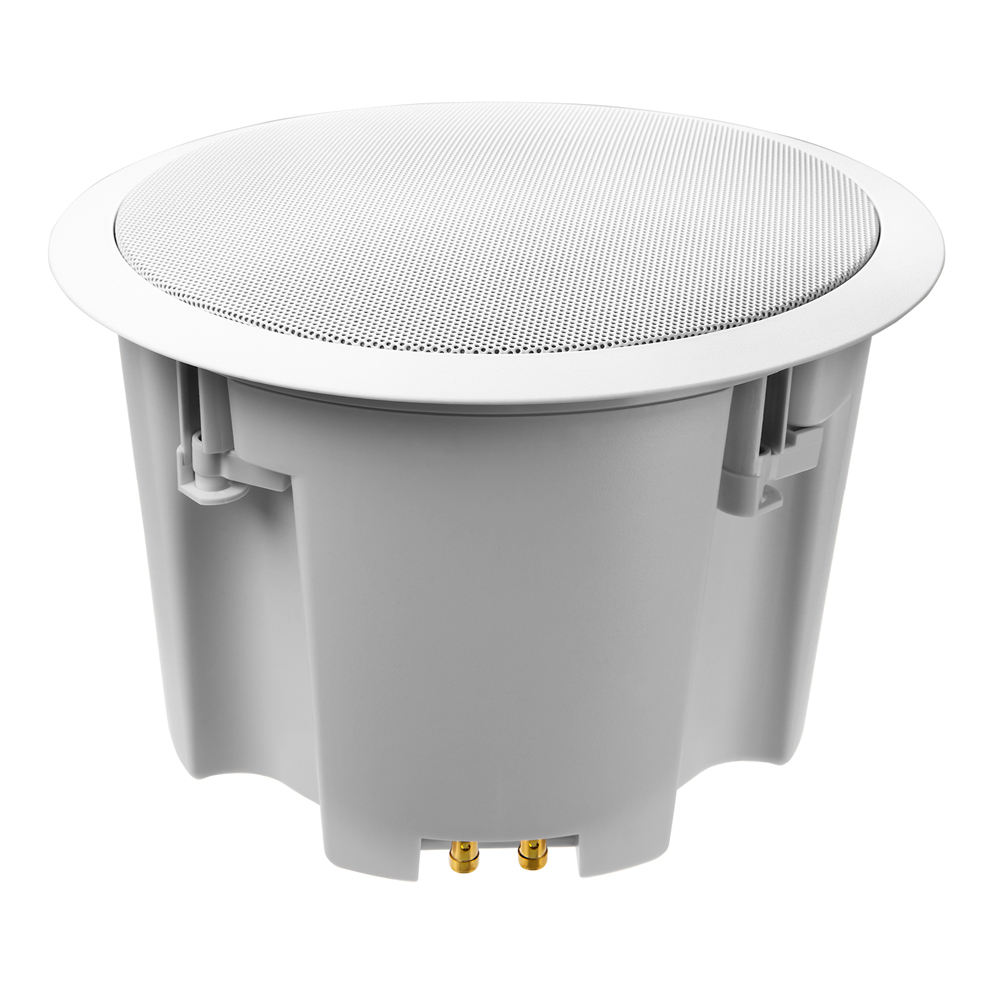

A 6.5 inch polypropylene cone woofer with rubber surround and a 1/2 inch PEI dome tweeter deliver full range sound from 60Hz to 22kHz with 88 dB sensitivity, and a refined crossover keeps bass clean and highs clear. The enclosed back can protects the driver and gives consistent performance in drop ceilings and open plenum spaces.

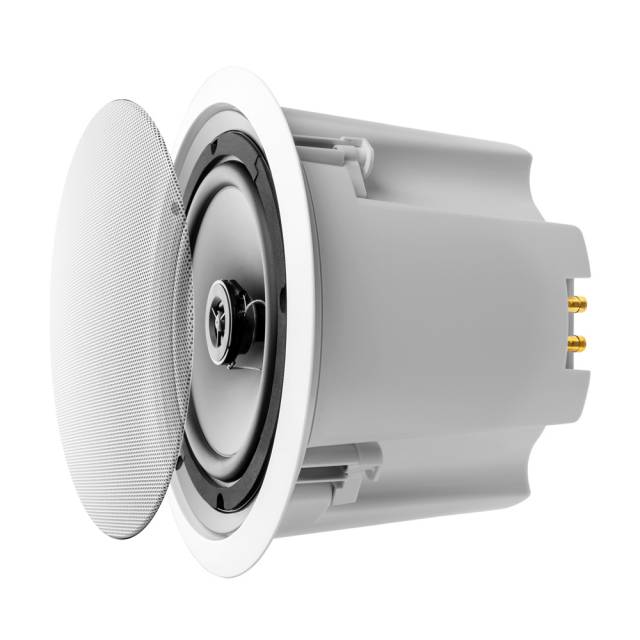

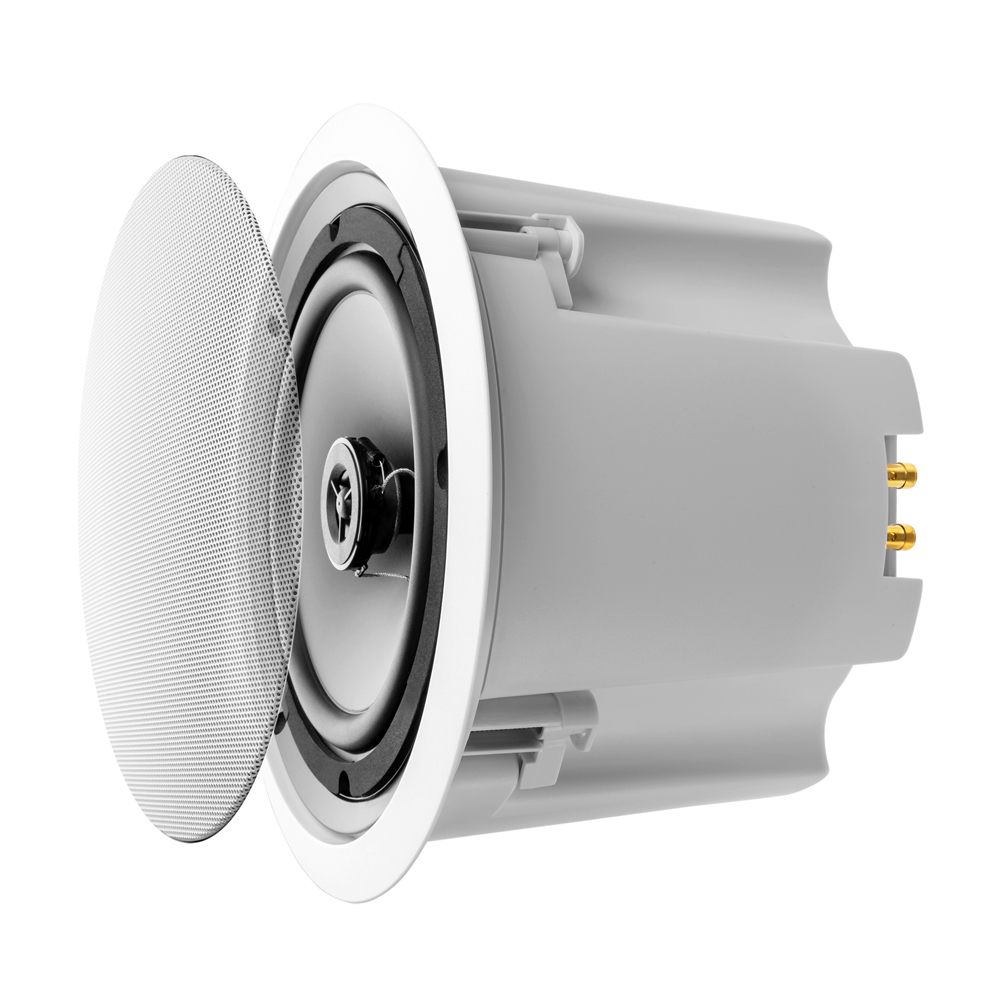

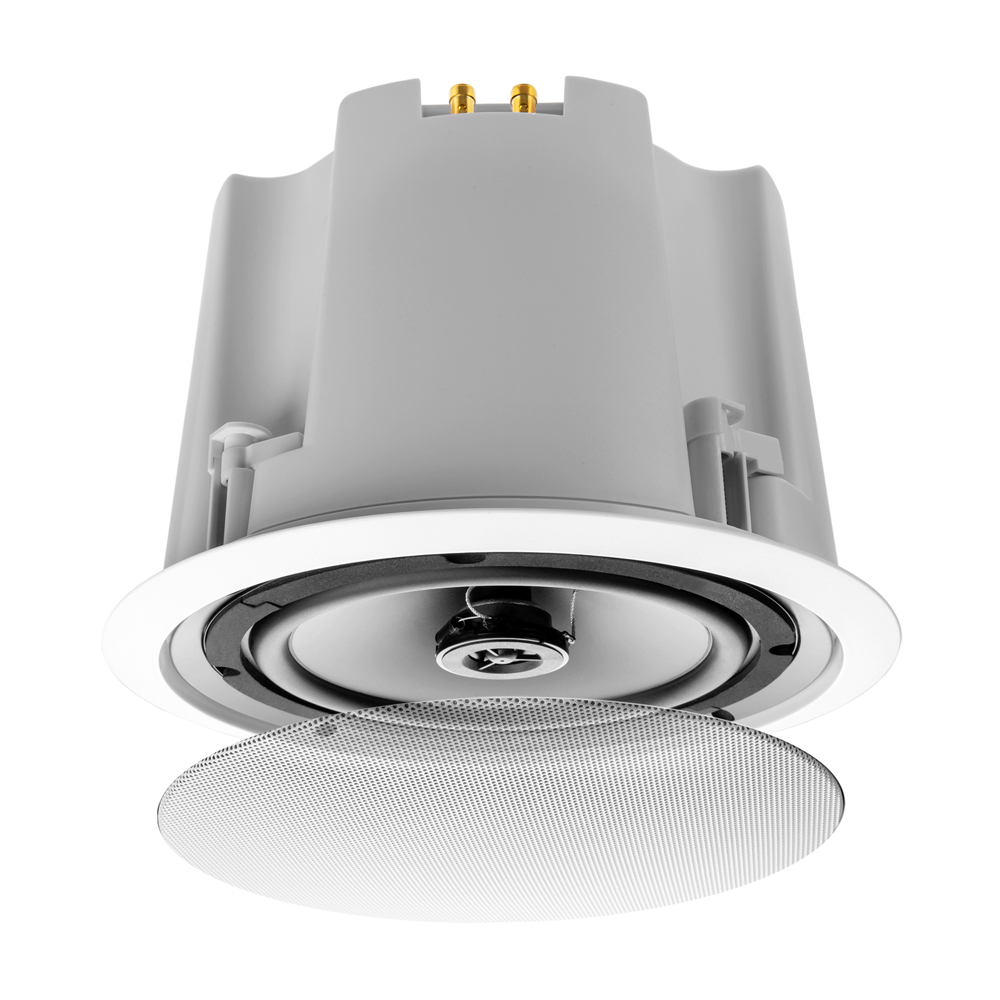

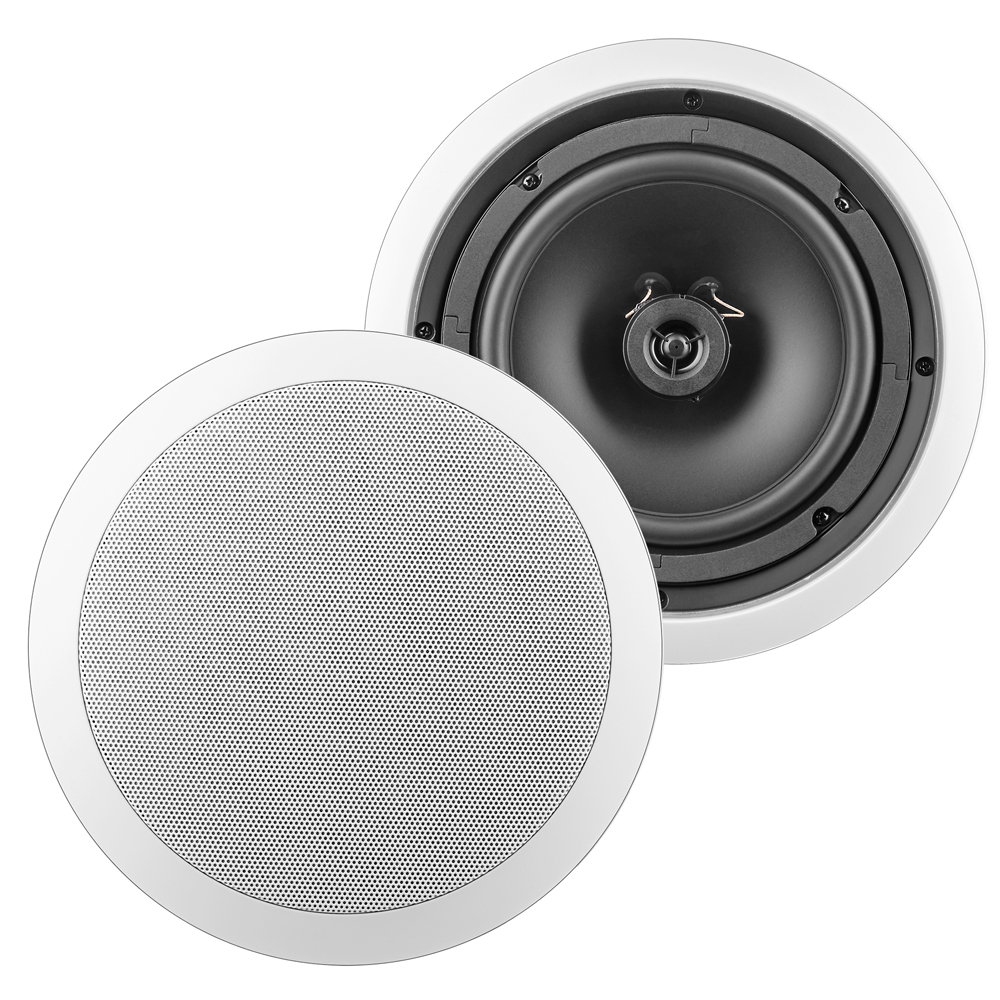

Built-in dog ear clamps grip the ceiling as you tighten the screws, so no mounting brackets are needed for retrofit installs. The one piece magnetic grille covers the whole speaker and can be spray painted to match your ceiling. This is a passive speaker and requires a 70V, 100V or 8 ohm amplifier.

Check the Fit

Needs a 7.88 inch cutout and 5.5 inches of clearance above the ceiling; paintable grille is 9.5 inches across. Replacing speakers? Measure the old hole first. Dog ear clamps, no brackets needed. Sold as single

Key Features

• 70V/100V Or 8 Ohm: Built-in transformer with 30W, 15W and 7.5W taps runs many speakers on one 70V or 100V commercial amplifier, or use the 8 ohm setting with a standard home amp or receiver
• Enclosed Back Can: Factory installed back can controls the sound, protects the driver from dust and debris and makes the speaker ideal for drop ceilings and open plenum spaces
• Clear Full Range Sound: 6.5 inch polypropylene cone woofer and 1/2 inch PEI dome tweeter deliver clean music and voice from 60Hz to 22kHz, with 100W power handling and 88 dB sensitivity
• Built For Business: Ideal for restaurants, bars, retail stores, offices, lobbies, gyms, schools and houses of worship that need even background music and announcements
