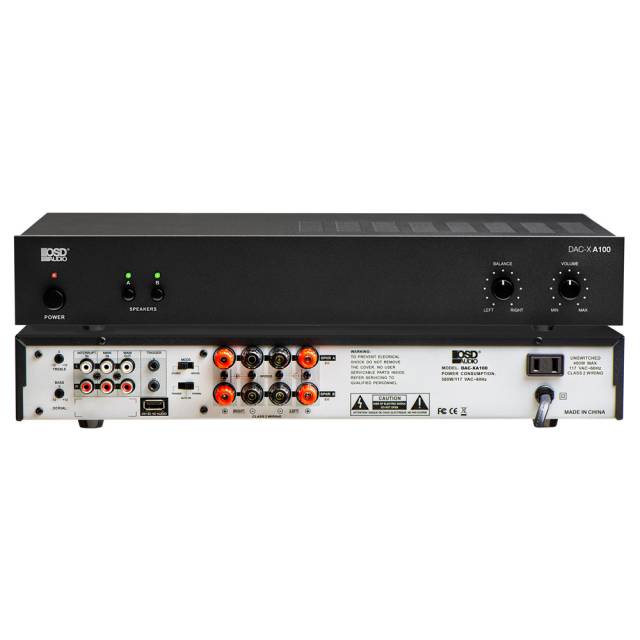

    OSD DAC-XA100 100W RMS 2 Channel Class AB Power Amplifier with 24/192 Hi-Res DAC Built In

    Thumbnail Filmstrip of OSD DAC-XA100 100W RMS 2 Channel Class AB Power Amplifier with 24/192 Hi-Res DAC Built In Images

      Purchase OSD DAC-XA100 100W RMS 2 Channel Class AB Power Amplifier with 24/192 Hi-Res DAC Built In

      OSD DAC-XA100 100W RMS 2 Channel Class AB Power Amplifier with 24/192 Hi-Res DAC Built In

      SKU: DAC-X-A100

      Audiophile Class AB Amp - Experience the pure sound of music with this audiophile-grade Class AB amplifier. It delivers up to 50W(RMS) per channel at 8 ohms, 60W(RMS) per channel at 4 ohms, and 150W bridged mono at 8 ohms, so you can enjoy your favorite tunes with crystal-clear clarity.

      Digital Signal Processing - The built-in 24-bit, 192 kHz sampling D to A converter with USB Audio input ensures that your music sounds its best. This advanced technology converts digital audio signals to analog signals, which are then amplified and sent to your speakers. The result is a more detailed, immersive listening experience.

      Priority Input Switching - With priority input switching, you can connect multiple audio sources to your amplifier and easily switch between them. When you turn on a source, its signal will automatically take priority over the other sources. This makes it easy to listen to the music you want, when you want.

      Bass and Treble Controls - The rear-mounted bass and treble controls give you the flexibility to customize your sound to your liking. Whether you prefer a warm, rich sound or a bright, crisp sound, you can easily achieve the perfect listening experience.

      A/B Speaker Switching - The front-panel A/B speaker switching allows you to easily toggle between two pairs of speakers. This is perfect for when you want to listen to different speakers in different rooms or when you want to compare the sound of two different speaker systems.

      OSD DAC Series: DAC-XA100 amplifier makes a great choice for powering speakers in a stereo or multi-room sound system. This versatile amp's 24/192 USD Audio and dual line-level inputs let you enjoy sound from one main music source plus additional "local" audio sources, switching automatically between them.

      You can connect your TV as the primary source feeding the main input. Turn on the TV and the X-A100 turns itself on and sends the music to your speakers. Then, if you connect another music source like a Bluetooth player, Digital Audio device or portable music player to the secondary local "Interrupt,” the amp will switch to that source whenever it senses an incoming music signal.  When the other source stops playing, the X-A100 will automatically switch back to the TV. There is no need to manually switch inputs.

      The 24/192 Digital Stereo Power Amplifier OSD Audio DAC-X-A100 is designed for dedicated stereo and distributed audio applications. It offers many features including A and B speaker outputs. USB Type A 24/194 HD Audio input as well as RCA Line In, and Interrupt Line In inputs. It can also be configured for Stereo or Bridged output.

      Read More
      Read Less


      Technical Specifications

      • Amplifier Type: Dual Source Automatic Switching Amplifier
      • Amplifier Class: Class AB
      • Channels/Zones: 2
      • Power Output @ 8 Ohm: 50W(RMS)/120W(MAX) per channel,<0.2% THD
      • Power Output @ 4 Ohm: 60W(RMS)/150W(MAX) per channel, <0.2% THD
      • Bridged Rating (Watts):  150W, 1Hz, <0.2% THD
      • Frequency Response: 10Hz-20kHz
      • Impedance: 8 Ohm and 4 Ohm Stable
      • DAC: CT7601+ES9018KM2, Supports 24Bit/192Khz
      • Transformer Type: Fixed Mode
      • Input Terminals: Stereo RCA x 2 (Main and Interupt)
      • Outputs: Speakers A + B and Stereo RCA Pass Thru Main Line Input Only
      • Signal to Noise Ratio: 100dB
      • Capacitors: 2 x 6800վf
      • Air-cooled or Fan-cooled: Air Cooled
      • Control: Speaker Selector, Vol, Bass, Treble
      • 12 Volt Triggers: Yes
      • Auto-On Sensing: Yes
      • Power Supply: Fixed Mode
      • Rack Mountable: No
      • Dimensions (L x D x H): 16.5” x 9.5” x 2.9”
      • Weight: 9.6 lbs
      • Rating: CE
      • Warranty: 2 years

      Additional Info

      Power Up Your Sound Experience with our New DAC-XA100!
      Read More...

      Power Up Your Sound Experience with our New DAC-XA100!

      Introducing the OSD DAC-XA100, a 100W RMS stereo power amplifier […]
