Thumbnail Filmstrip of 2x Zone Mono 70V Speaker Selector W/ 2x Built-In 100W Volume Controls & Pass Thru Output SS2V70 Images

The SSVC2V70 is a unique 70V speaker selector featuring 2 independent zones each controlled by a 100 Watt 70V mono volume control featuring a rotary style knob wtih each zone having an On/Off switch as well. The unit has a single 2 conductor input and direct pass thru allowing to stack additional SSVC27V speaker selectors, only limited by your application. Standard 70V rules apply to the number of speakers used per zone, matching the available power from the 70V amplifier.

Technical Specifications

Speaker Selector Type: 70V Mono Single Channel
# of Zones or Speaker Pairs: 2
Single Source
Power Handling: 100W Per Channel
Frequency Response: 20Hz-22KHz (+0 dB, -0 dB)
Direct Pass Thru Allowing to Stack Additional SS2V70, Only Limited by Your Application
Steps: 33 dB, 10 Steps Plus Full Off (Step 11)

Impedance Protection: 70V Mono Only, No Impedance Protection Needed

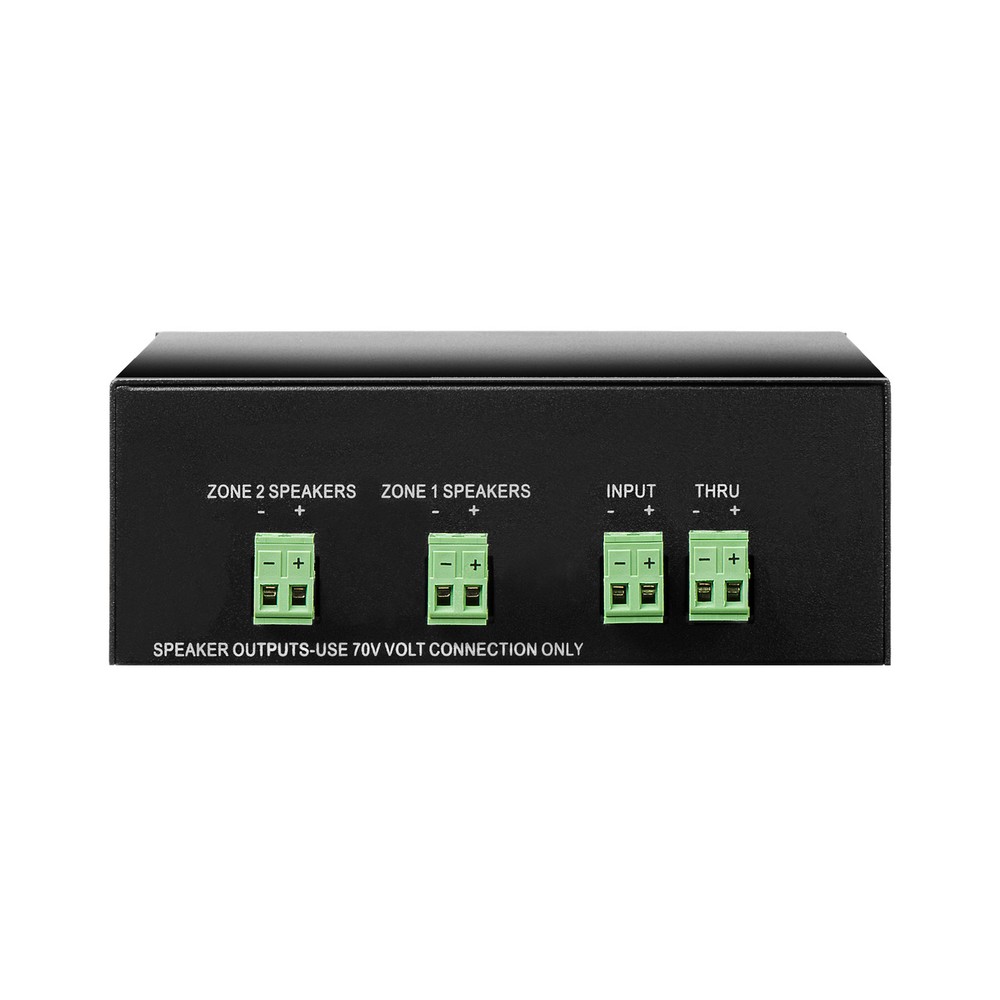

Input/ Output Connector Type: Removable Phoenix Connectors
Wiring Requirement: 16 Gauge 2 Conductor
Dimensions (L x H x D): 6.75" x 2.12" x 5.38"
Weight: 2 lbs
Warranty: 2 Years

Product Manual Download
