Home Theater Amplifiers

OSD Home Theater Amplifiers

Crafted for Cinematic Clarity

OSD Audio has a long history in manufacturing home theater amplifiers. More than 10 years ago we introduced the A5000, astonishing the world with its audiophile sound quality at an affordable price.

Since then, we have innovated, expanded and improved our lineup of amplifiers designed for home theater use. We now have six models, with a seventh coming shortly, that offer everything from bridged two channels, all the way to 11-channel designs. Our power ratings go from 100 watts to 400 watts per channel, with all channels driven. Our distortion levels and signal-to-noise ratios are all comfortably in the range of inaudibility. Whatever your home theater amplification needs are, we have you covered.

NERO-XMAX11

XMAX11: Unmatched Home Theater Power

The OSD XMAX11 is a high-current 11-channel amplifier designed for reference-level home theater performance. With 3x 310W & 8x 135W of pure Class AB power, it delivers dynamic, distortion-free sound for an immersive cinematic experience. Built with a 2.3KVA toroidal transformer and precision-matched components, the XMAX11 ensures consistent, high-fidelity audio across every channel.

Nero XMAX11 Specifications

All Channel Output:
Channels 1-3

4 Ohms @1% THD - 310W
8 Ohms @1% THD - 210W
4 Ohms @0.1% THD - 290W
8 Ohms @0.1% THD - 190W

Channels 4-11

4 Ohms @1% THD - 135W
8 Ohms @1% THD - 85W
4 Ohms @0.1% THD - 100W
8 Ohms @0.1% THD - 75W

Single Channel Output:
Channels 1-3

4 Ohms @1% THD - 370W
8 Ohms @1% THD - 230W

Channels 4-11

4 Ohms @1% THD - 180W
8 Ohms @1% THD - 118W

Signal to Noise:

Rated Power: 110dB
1W: 105dB

Other Specifications

Frequency Response: 5Hz - 50KHz, +0/- 3dB
Damping Factor Rated Power: 165W
Class AB
12V Trigger
Idle Current: 0.35 Amps
Max Current All Channels: 18 Amps
Efficiency of Amplifier - 67%
Number of Output Devices: 28 Total Devices
Filter Capacitance:: 4x 1000цF per screen channel/ 2x 1000цF per other channel
Crosstalk: >70dB - 20Hz -20KHz
Gain: 28 dB
Input Impedance: 100K ohms
Input Sensitivity: 1.00 Volt
Remote Trigger Voltage: 8 to 24 Volt DC - 5mA
Weight: 89 lbs
Dimensions: 7.25" x 17.1" x 17.6"
Warranty: 5 Years

HTA Series

Versatile 4, 5, and 7 Channel Class AB amplifiers designed to meet the demands of home theaters and multi-room audio systems. With 200W per channel into 4 ohms

Nero HTA4200 Specifications

All Channel Output:

4 Ohms @1% THD - 200W
8 Ohms @1% THD - 140W
4 Ohms @0.1% THD - 180W
8 Ohms @0.1% THD - 120W

Single Channel Output:

4 Ohms @1% THD - 260W
8 Ohms @1% THD - 180W
4 Ohms @0.1% THD - 230W

Bridged Rating: 8 Ohms @1% THD - 400W

Signal to Noise:

Rated Power: 110dB
1W: 105dB

Frequency Response: 5Hz - 50KHz, +/- 3dB
Input Sensitivity: 1V
Class AB
Air Cooled
12V Trigger
Idle Current: 0.14 Amps
Max Current All Channels: 10.7 Amps
Transformer: Toroidal
Capacitors: 4 x 10000uF
Power Supply: 110/240V
Rack Mountable: Shelf
Weight: 51 lbs
Dimensions: 6.3" x 17.1" x 16.57"
Warranty: 5 Years

Nero HTA5200 Specifications

All Channel Output:

4 Ohms @1% THD - 210W
8 Ohms @1% THD - 145W
4 Ohms @0.1% THD - 180W
8 Ohms @0.1% THD - 125W

Single Channel Output:

4 Ohms @1% THD - 265W
8 Ohms @1% THD - 180W
4 Ohms @0.1% THD - 235W

Signal to Noise:

Rated Power: 110dB
1W: 105dB

Frequency Response: 5Hz - 50KHz, +/- 3dB
Input Sensitivity: 1V
Class AB
Air Cooled
12V Trigger
Idle Current: 0.14 Amps
Max Current All Channels: 13.6 Amps
Transformer: 2x Toroidal
Capacitors: 4x 10000uF
Power Supply: 110/240V
Rack Mountable: Shelf
Weight: 63 lbs
Dimensions: 6.3" x 17.1" x 16.57"
Warranty: 5 Years

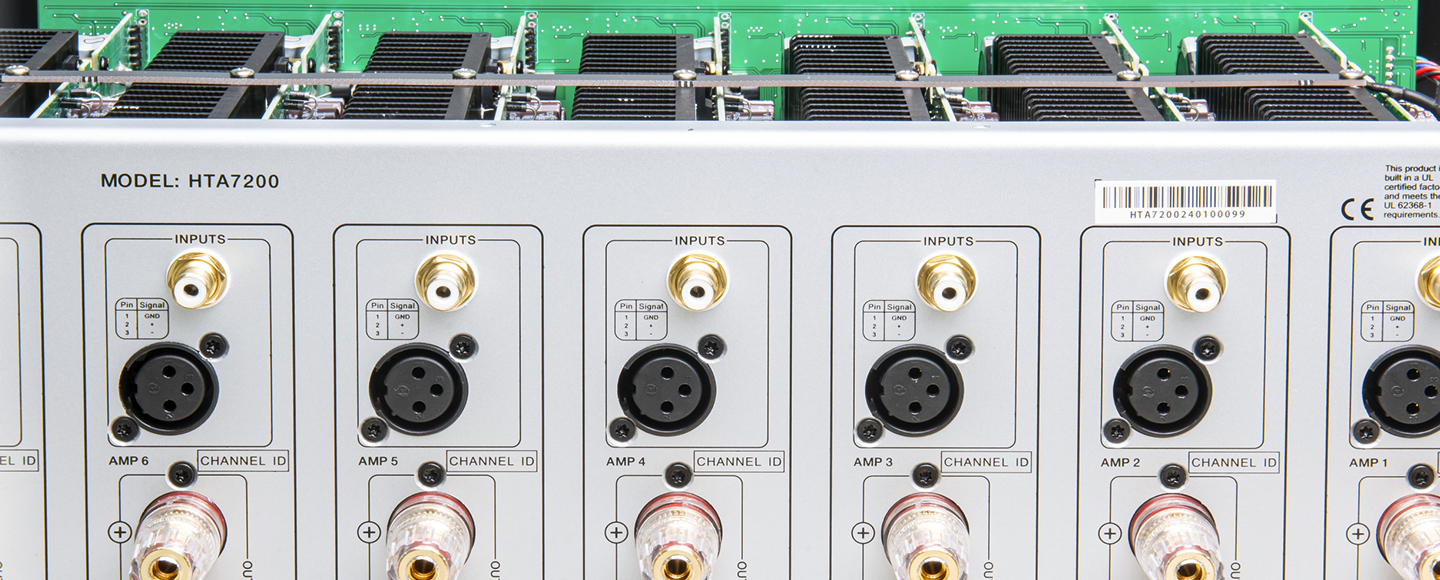

Nero HTA7200 Specifications

All Channel Output:

4 Ohms @1% THD - 210W
8 Ohms @1% THD - 145W
4 Ohms @0.1% THD - 180W
8 Ohms @0.1% THD - 125W

Single Channel Output:

4 Ohms @1% THD - 265W
8 Ohms @1% THD - 180W
4 Ohms @0.1% THD - 235W

Signal to Noise:

Rated Power: 110dB
1W: 105dB

Frequency Response: 5Hz - 50KHz, +/- 3dB
Input Sensitivity: 1V
Class AB
Air Cooled
12V Trigger
Idle Current: 0.14 Amps
Max Current All Channels: 19 Amps
Transformer: 2x Toroidal
Capacitors: 4x 10000uF
Power Supply: 110/240V
Rack Mountable: Shelf
Weight: 71 lbs
Dimensions: 6.3" x 17.1" x 16.57"
Warranty: 5 Years

HTX Series

Powerful, Highly Configurable Class D Amplifiers. Two of the channels can be Bridged and used as a Sub Amp with Frequency X-Over and Level Control. With 200W per channel into 4ohms, 400W Bridged @ 8ohms.

Nero HTX4150 Specifications

OUTPUT POWER (RMS) @ 0.1% THD (Single Channel):

4 Ohms: 150W
8 Ohms: 85W

OUTPUT POWER (RMS) @ 1% THD (Single Channel):

4 Ohms: 200W
8 Ohms: 120W

ALL CHANNEL OUTPUT POWER (RMS) @ 0.1% THD:

4 Ohms: 130W
8 Ohms: 75W

ALL CHANNEL OUTPUT POWER (RMS) @ 1% THD:

4 Ohms: 175W
8 Ohms: 100W

Bridged Rating (RMS) @ 1% THD (Single Channel):

8 Ohms: 400W

Frequency Response: 10-30kHz
Signal to Noise Ratio (A-weighted): 105 dB
Damping Factor (1kHz, 8 Ohms): 90
Idle Current: 0.18 Amps
Max Current @ All Channels Rated Power: 5.9A
Efficiency of Amplifier: 88%
Amplifier Type: D
Transformer Type: SMPS
Air-Cooled or Fan-Cooled: Fan
12 Volt Triggers: Yes
Auto-On Sensing: Yes
Sub-Out: Yes
Power Supply: 115V, 230V or 110-230V
Rack Mountable: Yes
Dimensions: (LxWxH): 15.16" x 16.73" x 3.46"
Weight: 22 Lbs
Certification: CE/UL
Warranty: 2 Years

Nero HTX6150 Specifications

OUTPUT POWER (RMS) @ 0.1% THD (Single Channel):

4 Ohms: 150W
8 Ohms: 85W

OUTPUT POWER (RMS) @ 1% THD (Single Channel):

4 Ohms: 200W
8 Ohms: 120W

ALL CHANNEL OUTPUT POWER (RMS) @ 0.1% THD:

4 Ohms: 130W
8 Ohms: 75W

ALL CHANNEL OUTPUT POWER (RMS) @ 1% THD:

4 Ohms: 175W
8 Ohms: 100W

Bridged Rating (RMS) @ 1% THD (Single Channel):

8 Ohms: 400W

Frequency Response: 12-39kHz
Signal to Noise Ratio (A-weighted): 105 dB
Damping Factor (1kHz, 8 Ohms): 90
Idle Current: 0.19 Amps
Max Current @ All Channels Rated Power: 8.7A
Efficiency of Amplifier: 88%
Amplifier Type: D
Transformer Type: SMPS
Air-Cooled or Fan-Cooled: Fan
12 Volt Triggers: Yes
Auto-On Sensing: Yes
Sub-Out: Yes
Power Supply: 110/120 or 220/240V
Rack Mountable: Yes
Dimensions: (LxWxH): 15.16" x 16.73" x 3.46"
Weight: 24 Lbs
Certification: CE/UL
Warranty: 2 Years

Nero HTX8150 Specifications

OUTPUT POWER (RMS) @ 0.1% THD (Single Channel):

4 Ohms: 150W
8 Ohms: 85W

OUTPUT POWER (RMS) @ 1% THD (Single Channel):

4 Ohms: 200W
8 Ohms: 120W

ALL CHANNEL OUTPUT POWER (RMS) @ 0.1% THD:

4 Ohms: 130W
8 Ohms: 75W

ALL CHANNEL OUTPUT POWER (RMS) @ 1% THD:

4 Ohms: 175W
8 Ohms: 100W

Bridged Rating (RMS) @ 1% THD (Single Channel):

8 Ohms: 400W

Frequency Response: 12-30kHz
Signal to Noise Ratio (A-weighted): 105 dB
Damping Factor (1kHz, 8 Ohms): 90
Idle Current: 0.22 Amps
Max Current @ All Channels Rated Power: 12.1A
Efficiency of Amplifier: 88%
Amplifier Type: D
Transformer Type: SMPS
Air-Cooled or Fan-Cooled: Fan
12 Volt Triggers: Yes
Auto-On Sensing: Yes
Sub-Out: Yes
Power Supply: 110/120 or 220/240V
Rack Mountable: Yes
Dimensions: (LxWxH): 15.16" x 16.73" x 3.46"
Weight: 25 Lbs
Certification: CE/UL
Warranty: 2 Years
